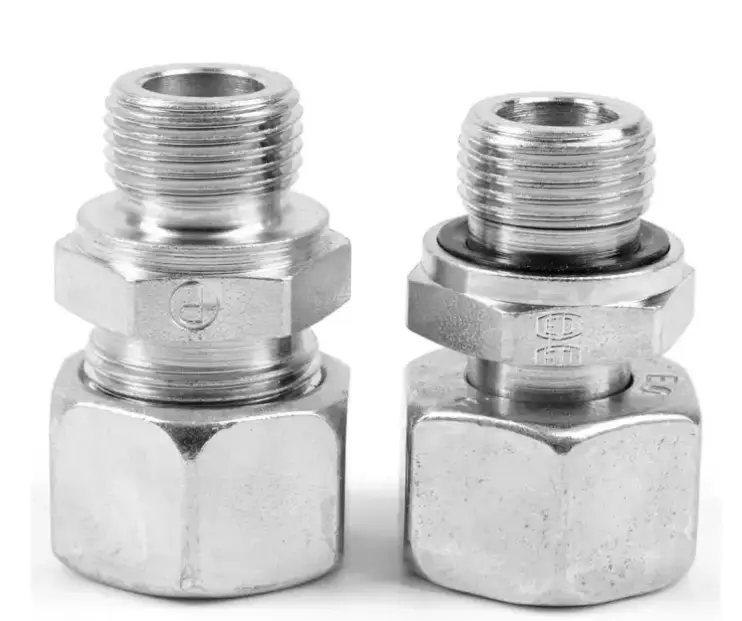

GE42LREDOMDCF
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel with Cr(VI)-free surfaces and in stainless steel.
TECHNICAL DESCRIPTION:
| seal material | nbr |
| shape | straight male stud connector |
| connection 1 size | g 1 1/2 a |
| connection 2 tube outside diameter | 42 mm |
| connection size | g 1/8 a to g 1 1/2 a; m 10x1.0 to m48x2.0; 7/16-20unf-2a to 1 5/8-12un-2a; 1/8-27 npt to 1 1/2-11.5 npt |
| tube outside diameter | 6-42 mm |
| maximum operating temperature | +250 steel, +400 stainless steel °c, +482 steel, +752 stainless steel °f |
| Application | agriculture equipment, automotive process, chemical transfer, construction equipment, fuel transfer, hydraulic, manufacturing equipment, marine, material handling, mobile equipment, oilfield, packaging, transportation |
| specifications met | din iso 8434 |
product series | light |
connection 1 type | male bspp thread - ed (iso 1179) |
connection 2 type | 24° cone end |
materials of construction | steel |
connection 2 size | eo 24° cone end |
maximum operating pressure | 10-80 mpa, 100-800 bar, 1450-11603 psi |
minimum operating temperature | -40 (steel); -60 (stainless steel) °c, -40 steel, -76 stainless steel °f |
connection type | bite type, soft seal bite type |
