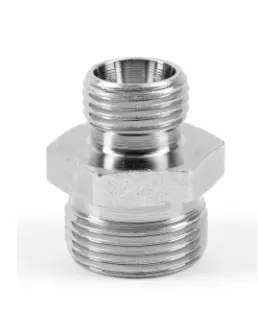

GR22/12LCFX
DESCRIPTION:
The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | 12 mm (O.D.) |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
| Maximum Operating Pressure: | 250 bar |
| Body Material: | Steel |
| Connection 1 Size: | 22 mm (O.D.) |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Shape: | Straight |
| Technology: | Fluid & Gas Handling |
| Connection 1 Type: | Male 24° Cone |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male 24° Cone |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Reducer |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Configuration: | Tube to Tube |
