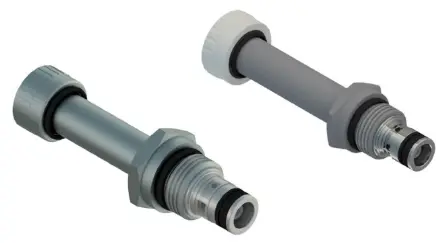

GS021200N
DESCRIPTION:
The GS021200N is a screw-in cartridge hydraulic solenoid valve that blocks hydraulic flow in both directions when de-energized (depending on configuration) and allows flow when energized. Its poppet sealing mechanism minimizes leakage, making it ideal for load holding circuits, lifting equipment, hydraulic actuators, and unloading circuits.
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Manufacturer | Parker Hannifin |
| Model Number | GS021200N |
| Product Type | 2-Way Poppet Type Bi-Directional Solenoid Valve |
| Valve Function | 2-Way, 2-Position |
| Operation | Solenoid Operated |
| Flow Direction | Bi-Directional |
| Valve Design | Poppet Type |
| Mounting Style | Screw-In Cartridge |
| Configuration | Normally Closed (N suffix typically denotes Nitrile seal version) |
| Maximum Operating Pressure | Up to 350 bar (5000 psi)* |
| Maximum Flow Capacity | Up to 285 L/min (75 GPM)* |
| Leakage Rate | Approximately 5 drops/min or less |
| Seal Material | Nitrile (NBR) |
| Fluid Compatibility | Mineral-based and synthetic hydraulic oils |
| Response Time | Fast response solenoid operation |
| Body Material | Hardened Steel Components |
| Surface Protection | Zinc-Plated External Parts |
| Applications | Load Holding, Lift Circuits, Double Blocking, Unloading Circuits |
