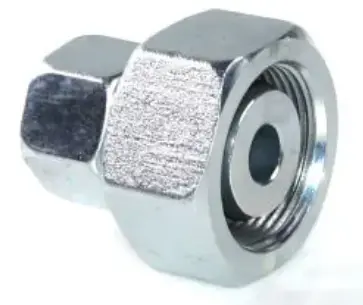

GZR35/28LCF
DESCRIPTION:
The main function of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings is the connection of 2 tubes or hoses. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| connection 1: | 24° DKO swivel |
|---|---|
| Connection 2: | 24° DKO swivel |
| L1: | 48 |
| L2: | 51 |
| ØD1: | 35 |
| ØD2: | 28 |
| ØD3: | 22 |
| S1: | 50 |
| S2: | 41 |
| T1: | M 45×2,0 |
| T2: | M 36×2,0 |
