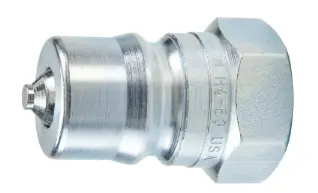

H4-63-BSPP
DESCRIPTION:
60 series steel nipple, ISO 7241-1 series B
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Application: | General Purpose |
| Maximum Operating Pressure: | 4000 |
| Body Material: | Steel |
| Coupling Half: | Male Nipple |
| Connection Thread Size (inch): | 1/2 - 14 |
| Seal Material: | Nitrile |
| Connection Type: | Female BSPP |
| Body Size (inch): | 1/2 |
| Specifications Met: | ISO 7241-1, series B |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Product Type: | Manual Connect |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Valve Type: | Poppet |
| Flow Rate: | 12 gal/min, 45 L/min |
| Hex Size: | 1.12 inch |
| Vacuum Pressure Rating: | -0.9 bar, 27.4 inch-Hg |
| Valve Material: | Steel |
| Plating Type: | Zinc with clear trivalent chromate |
