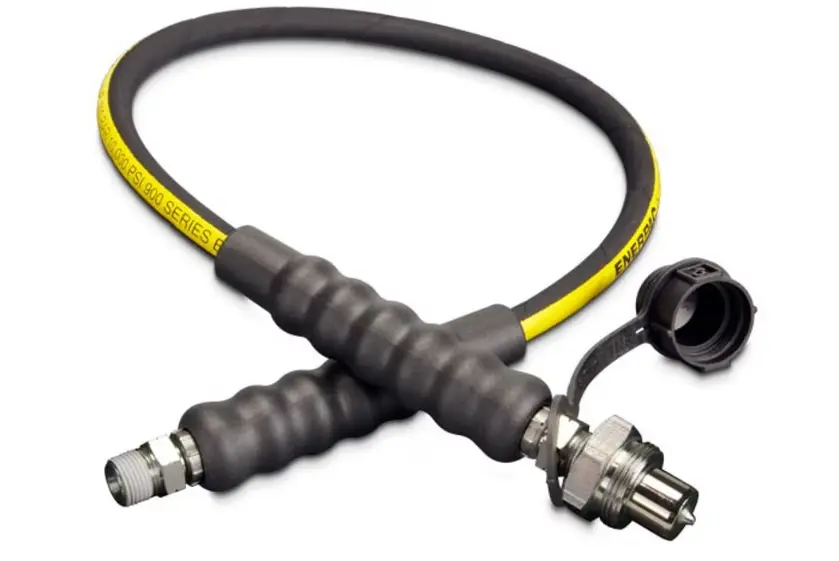

HC9203
DESCRIPTION:
H900-Series Hydraulic Hoses are designed to comply with the Material Handling Institute IJ100 hose specification. They provide the durability needed for repeated heavy-duty high-pressure applications and offer the optimum combination of flexibility and low ‘memory’ needed for long hose runs.
TECHNICAL DESCRIPTION:
Maximum Operating Pressure : 10,000 psi
Internal Diameter : 0.25 in (6,4 mm)
End One Coupler : 3/8" NPTF
End Two Coupler : CH604
Oil Capacity : 1.77 in3
Length : 3 ft
Weight : 2.2 lbs
