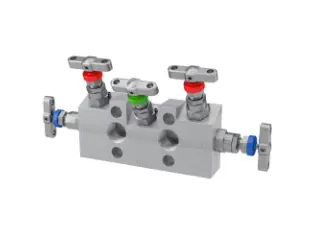

HDS5MA
DESCRIPTION:
Compact and lightweight multiple block instrument manifold valves for direct installation to pressure or differential pressure (flow) measurement devices. DIN/IEC 61518 compliant. Pressure ratings up to 6,000 psi (414 bar).
TECHNICAL DESCRIPTION:
| Packing Material: | PTFE |
| Operating Pressure: | 6000 PSI / 414 BAR |
| Body Material: | 316 Stainless Steel |
| Outlet Connection: | DIN IEC B Flange |
| Body Type: | Flat Barstock |
| Vent Size: | 1/4 Inch NPT Female |
| Inlet Connection: | 1/2 Inch NPT Female |
| Seat Material: | Metal to Metal |
| Configuration: | Double Isolate and Inclined Equalise Valve with Vents |
| Number of Valves: | 5 |
