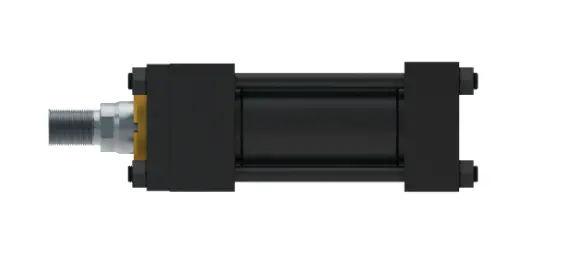

HMI-100301091819843
DESCRIPTION:
210 bar Industrial Hydraulic Cylinders conforming to ISO 6020/2. The tie rod construction sets the standard for performance, durability and trouble-free operation with superior design and quality to ensure long cylinder service life.
TECHNICAL DESCRIPTION:
| Number of Rod Sizes per Bore Size: | up to 3 |
| Product Style: | Tie Rod |
| Maximum Operating Pressure: | 210 bar |
| Minimum Bore Diameter: | 25 mm |
| Bore Diameter: | 200 mm Max. |
| Minimum Rod Diameter: | 12 mm |
| Maximum Rod Diameter: | 140 mm |
| Maximum Stroke Length: | 5000 mm |
| Operating Temperature: | -20 to 150 °C |
| Mounting Type: | Extended Tie-rods, Flange, Foot, Pivot, Trunnion |
| Cylinder Action: | Single Acting, Double Acting |
| Port Type: | Metric, BSPP |
| Piston Type: | Standard, Low Friction, Load Master |
| Rod End Type: | up to 7 |
| Rod End Thread Type: | Metric |
| Technology: | Hydraulics |
| Product Type: | Cylinder Actuator |
| Product Series: | Series HMI Industrial Hydraulic Cylinders |
