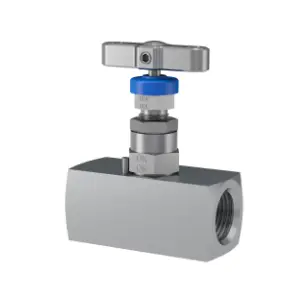

HNVS4FF3
DESCRIPTION:
Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
TECHNICAL DESCRIPTION:
| Body Material: | 316 Stainless Steel |
| Packing Material: | Graphite |
| Outlet Connection Size: | 1/4 Inch |
| Flow Direction: | Straight |
| Inlet Connection Size: | 1/4 Inch |
| Orifice Size: | 4 mm |
| Seat Material: | Metal to Metal |
| Flow Coefficient: | 0.35 |
| Specifications Met: | N/A |
| Maximum Operating Pressure: | 6000 PSI / 414 BAR |
