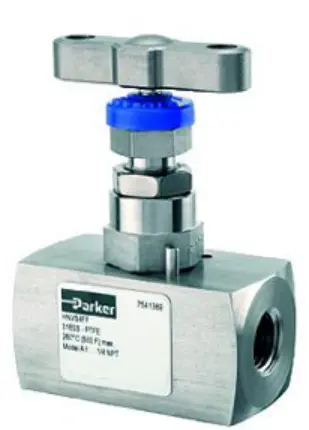

HNVS6RFF
DESCRPTION:
Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Part Number | HNVS6FF |
| Manufacturer | Parker Hannifin |
| Series | H Series (HNV) |
| Valve Type | Needle Pattern Hand Valve |
| Body Style | Straight Pattern |
| Connection Type | Female NPT x Female NPT |
| Connection Size | 3/8" NPTF |
| Body Material | 316 Stainless Steel |
| Seat Type | Metal-to-Metal |
| Packing Material | PTFE |
| Maximum Operating Pressure | 6,000 psi (414 bar) |
| Flow Coefficient (Cv) | 0.35 |
| Orifice Size | 4 mm |
| Flow Direction | Straight Through |
| Media | General Gases and Liquids |
| Stem Design | Non-Rotating, Self-Centering Needle Stem |
| Shut-Off Capability | Bubble-Tight Shut-Off |
| Applications | Instrumentation, Process Control, Hydraulic & Pneumatic Systems, Sampling Lines |
