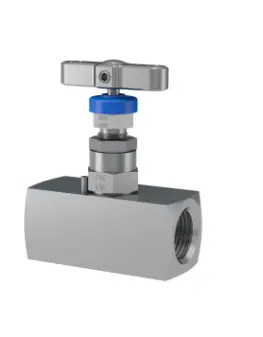

HNVS8FF3
DESCRIPTION:
Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
TECHNICAL DESCRIPTION:
| Seat Material: | Metal to Metal |
| Outlet Connection Size: | 1/2 Inch |
| Maximum operating pressure: | 6000 PSI / 414 BAR |
| Orifice size | 4 mm |
| Flow Coefficient: | 0.35 |
| Flow Direction: | Straight |
| Packing Material: | Graphite |
| Body Material: | 316 Stainless Steel |
| Inlet Connection Size: | 1/2 Inch |
| Inlet Port Connection Type: | NPT Female |
