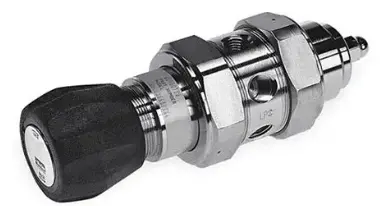

IR6004SK4PXX4B

DESCRIPTION:

The IR6000 Series regulator offers high pressure capability with an inlet pressure up to 4,000 psig. The large convoluted Hastelloy C-22® diaphragm provides stable pressure control over the operational range of the regulator.

TECHNICAL DESCRIPTION:

Body Material: 316L Stainless Steel (std), Hastelloy C-22, Monel,<br> (Hastelloy Trim is std with Hastelloy and Monel bodies)

Compression Member Material: Inconel 625

Diaphragm Material: Hastelloy C-22

Poppet Material: Hastelloy C-276 , Spring: Inconel X750

Seat Type: PCTFE (std), Vespel, PEEK

Seat Retainer Material: 316L Stainless Steel (std), Hastelloy C-22

Back-Up Washer Material: 316 Stainless Steel (std), Hastelloy C-276

O-Ring Material: FKM (std), PTFE

Filter Material: 316 Stainless Steel (std) (60um mesh screen, 10um Filter),<br>Hastelloy (on Hastelloy, Monel bodies)

Seat Material: PEEK

Cap Material: Nickel Plated Brass (std), Stainless Steel

Nut Material: Stainless Steel

Knob Material: ABS (std) (ambient temp), Aluminum

Burst Pressure: 12,000 psig (828 barg)

Proof Pressure: 6,000 psig (414 barg)

Flow Rate: Cv: 0.06 (std), 0.02, 0.15

Internal Leak Rate: Bubble Tight

External Leak Rate: Bubble Tight

Supply Pressure Effect: 0.01 psig/100 psig (0.0007 barg/7 barg) @ 0.02Cv,<br>0.01 psig/100 psig (0.0007 barg/7 barg) @ 0.06 Cv,<br>0.02 psig/100 psig (0.001 barg/7 barg) @ 0.15 Cv

Volume

8.1 (without fittings) cm3

Weight: 3.5 lb, 1.6 kg

Maximum Inlet Pressure Rating: 4000 psi 0.06 Cv, 0.02 Cv, 1250 psi 0.15 Cv

Outlet Pressure Rating: 0-10 psig (0.7 barg), 1-30 psig (2 barg),<br>2-60 psig (4 barg), 3-100 psig (7 barg),<br>5-150 psig (10 barg), 10-250 psig (17 barg)

Maximum Operating Temperature: 66 (PCTFE), 135 (PEEK), 260 (Vespel), 66 (Self Relieving Option) °C, 150°F PCTFE, 275°F PEEK, 500°F Vespel, 150°F Self Relieving Option °F

Minimum Operating Temperature: -40 °C, -40 °F
