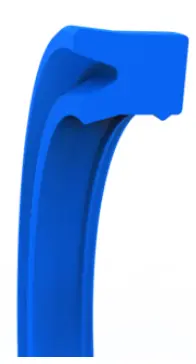

K-33 70X85X11.5 R-AV
DESCRIPTION:
K33 is a single acting rod seal designed to have inner lip shorter than the outer lip and additional sealing lip which improves the leakage behavior and, at the same time, prevents the entry of contaminations from the wiper side.
specifications:
Material: PU
Temperature: -35 ° C to 110 ° C
Pressure limit: 400 bar
Speed limit: 0.5 m/s
| Dimension | mm | inch |
|---|---|---|
| Inner diameter (ID) | 70 | 2.756 |
| Outer diameter (OD) | 85 | 3.346 |
| Height (H) | 11.5 | 0.453 |
