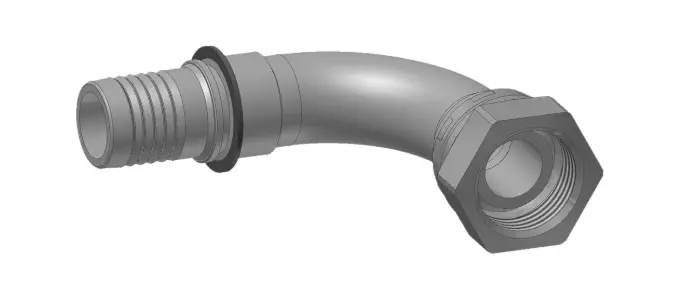

KB247-16-16C
DESCRIPTION:
Parker's 47 Series crimp style 2-pc. hydraulic stainless steel fittings are renowed for its ease of assembly and are a complete range of permament, crimp-style hydraulic hose fittings for use with adjustable crimpers.
Technical Specifications
| Shape: | Elbow 90° - (60° Cone) |
| Hose I.D. (size): | -16 |
| Port Connection: | 1"-11 |
| Product Style: | Female BSP Parallel Pipe - Swivel |
| For Fluid Type: | Hydraulic Fluids on Mineral-oil Basis, Coolants (Water-Glycol), Lubricants (Oils), Air, Water |
| Connection 2 Type: | Female BSP Parallel Pipe - Swivel |
| Connection 1 Type: | Parker Design |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Brand: | Parker |
| Maximum Operating Temperature: | 105 °C, 221 °F |
| Configuration: | Hose to Port |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Shape: | Elbow 90° - (60° Cone) |
| Application: | Medium Pressure Hydraulics |
| Product Type: | Crimp Fittings No-Skive Two-piece |
| Technology: | Fluid & Gas Handling |
| Tube Outside Diameter: | n/a |
| Connection 2 Size: | 1-11 inch Thread |
| Connection 1 Size: | 25.4 mm Hose I.D., 1 inch Hose I.D., -16 (Size) |
| Division: | Polymer Hose Division Europe |
| Body Material: | Stainless Steel |
| Maximum Operating Pressure: | 42.0 MPa, 420 bar |
| Hex Size: | 41 mm (see drawing legend H) |
| Fitting Length: | 106 mm (see drawing legend A) |
| Connection Length: | 74 mm (see drawing legend B) |
