M10FSC1/2N-316
DESCRIPTION:

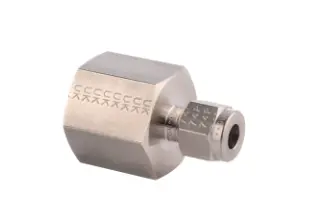

316 Stainless Steel NPT Female Connector Tube Fittings 10mm tube O.D. x 1/2" NPT, A-LOK® Series are designed for leak-free connections in process instrumentation and industrial applications.
TECHNICAL DESCRIPTION:
| Connection Thread Size: | 1/2" NPT |
| Materials of Construction: | Stainless Steel AISI 316 |
| Tube Outside Diameter | 10 mm O.D |
| Brand: | A-LOK |
| Configuration: | Tube to Pipe (Female Pipe) |
| Product Style: | Female National Pipe Tapered (NPT) Connector |
| Shape: | Straight |
| Operating Pressure: | 240 to 470 bar |
| Minimum Operating Temperature: | -255 °C |
| Maximum Operating Temperature: | 649 °C |
