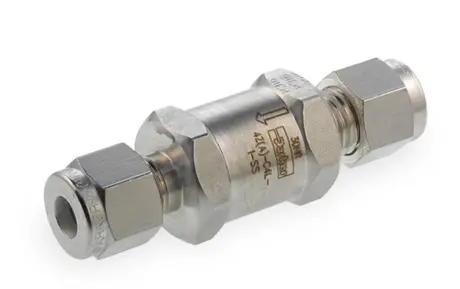

M18A-C12L-1-SS-C3
DESCRIPTION:
Parker IVD C Series Check Valve, Poppet Valve, 18mm A-LOK Compression Inlet & Outlet (Port 1 & 2), 1 psi Cracking Pressure, Ethylene Propylene Rubber (EPR) Seat, 316 Stainless Steel Body, 6000 psig CWP, 6.01 Cv Max, -70 to 275 F Deg Temperature Rating.
TECHNICAL DESCRIPTION:
- Manufacturer: Parker Hannifin
- Brand/Division: Instrumentation Products
- Product Category: Valves
- Product Type: Check Valves
- Body Material: 316 Stainless Steel
- End 1 Size: 18 mm
- End 1 Type: A-Lok
- End 2 Size: 18 mm
- End 2 Type: A-Lok
- Flow Rate: 6.01
- Pressure Rating: 6000 psig CWP
- Seat Material: Ethylene Propylene Rubber (EPR)
- Temperature Rating: -70°F to 275°F
