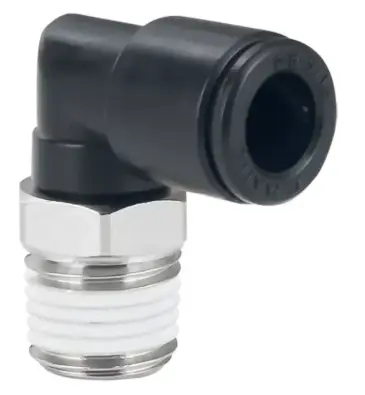

MB16 12 12
DESCRIPTION:
Taper Swivelling Elbow Fitting, Male is a 90° male elbow pneumatic fitting designed to connect tubing to threaded ports while allowing the fitting body to swivel for easy installation and tube alignment. It is commonly used in compressed air, pneumatic automation, and fluid transfer systems where space is limited and directional routing is required
TECHNICAL DESCRIPTION:
| Parameter | Description |
|---|---|
| Part Number | MB16 12 12 |
| Product Type | Taper Swivelling Elbow Fitting, Male |
| Fitting Configuration | 90° Elbow |
| Thread Type | Male Taper Thread |
| Thread Size | 12 mm Male Thread (as per series designation) |
| Tube Connection Size | 12 mm OD Tube |
| Swivel Feature | Rotatable elbow body for flexible tube orientation |
| Construction Material | Nickel-plated brass body (typical) |
| Seal Type | Thread sealing through taper thread engagement |
| Working Medium | Compressed air, vacuum, and compatible fluids |
| Operating Pressure | Suitable for standard pneumatic operating pressures |
| Operating Temperature | Typically -20°C to +80°C (depending on medium and seal material) |
| Corrosion Resistance | Good resistance due to nickel-plated finish |
| Installation | Threaded male port with push-in tube connection |
