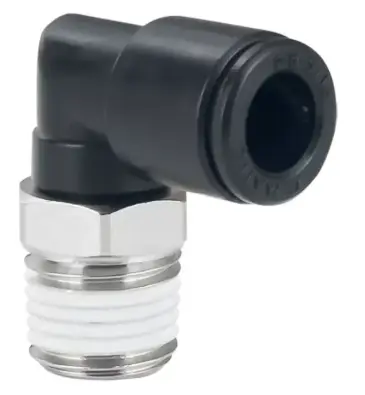

MB16 14 12
DESCRIPTION:
MB16 14 12 is a male taper swivelling elbow fitting used in pneumatic and fluid handling systems. The 90° elbow design enables directional changes in tubing runs, while the swivel feature allows easy alignment during installation. It is commonly used with compressed air, vacuum, and industrial fluid applications
TECHNICAL DESCRIPTION:
| Parameter | Description |
|---|---|
| Product Type | Taper Swivelling Elbow Fitting |
| Fitting Type | 90° Elbow |
| Connection Type | Male Thread × Tube Connection |
| Thread Type | Taper Male Thread |
| Swivel Feature | Yes |
| Tube Size | 12 mm OD |
| Thread Size | 14 mm (M14 Taper Thread) |
| Body Material | Nickel-Plated Brass |
| Seal Type | Thread Seal via Taper Thread |
| Operating Medium | Compressed Air, Vacuum, Compatible Fluids |
| Operating Pressure | Suitable for pneumatic system pressures (application dependent) |
| Operating Temperature | Typically -20°C to +80°C (depending on seal material) |
| Corrosion Resistance | Good, due to nickel-plated finish |
| Installation | Threaded into female port with tube insertion connection |
| Application | Pneumatic machinery, automation equipment, air distribution systems |
| Feature | Swivel body allows adjustment after installation |
| Flow Direction | 90° Change of Direction |
