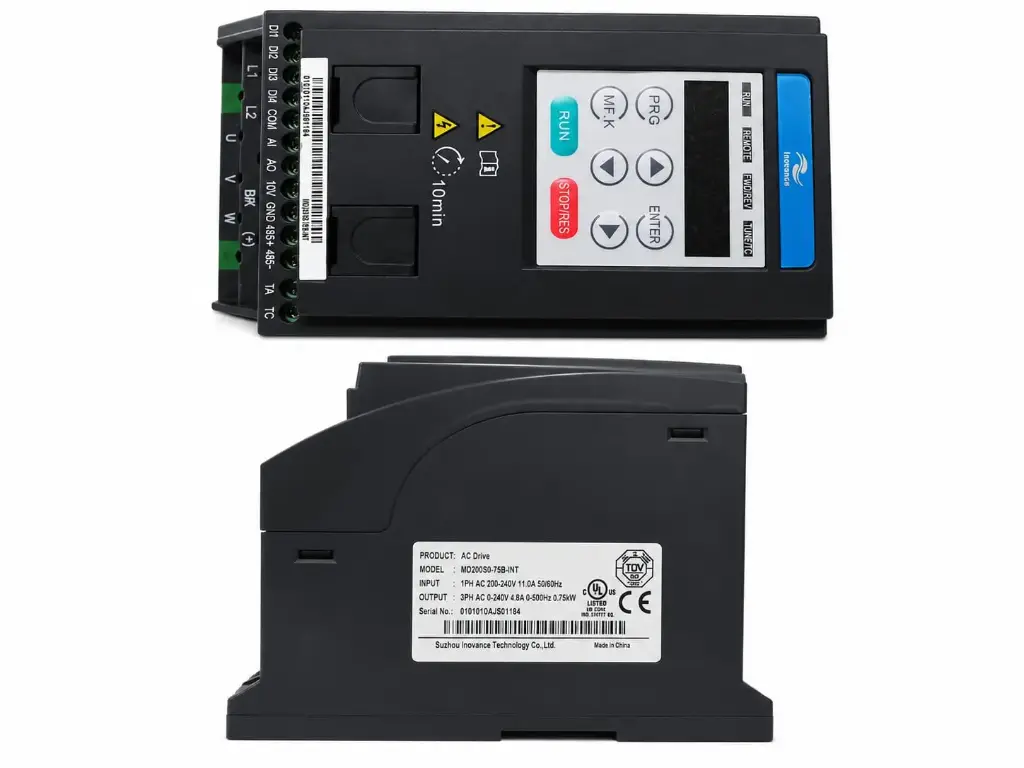

MD200S0.75B-INT
DESCRIPTION:
Inovance MD200S0.75B-INT AC Drive, 0.75 kW (1 HP), 1-Phase 200-240 VAC input, 4.6 A output, V/F and Sensorless Vector Control, built-in dynamic braking unit, suitable for industrial motor speed control applications.
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Model Number | MD200S0.75B-INT |
| Manufacturer | Inovance |
| Product Series | MD200 Series |
| Product Type | Variable Frequency Drive (VFD) / AC Drive |
| Rated Power | 0.75 kW (1 HP) |
| Input Voltage | Single Phase 200-240 VAC (-15% to +10%) |
| Input Frequency | 50/60 Hz ±5% |
| Rated Output Current | 4.6 A |
| Output Voltage | 0 to Input Voltage |
| Maximum Output Frequency | 500 Hz |
| Control Modes | V/F Control, Sensorless Vector Control (SVC) |
| Starting Torque | 150% at 3 Hz (SVC Mode) |
| Overload Capacity | 150% for 60 s, 180% for 3 s |
| Braking Unit | Built-in Dynamic Braking Unit |
| Communication | Modbus RTU (Standard), CANlink (Optional) |
| EMC Performance | Built-in EMC Filter (Category C3) |
| Protection Class | IP20 |
| Mounting Type | Panel / Cabinet Mount |
| Typical Applications | Pumps, Fans, Conveyors, Packaging Machines, Mixers, General Industrial Drives |
| Key Features | Compact size, high power density, easy commissioning, energy-efficient motor control |
