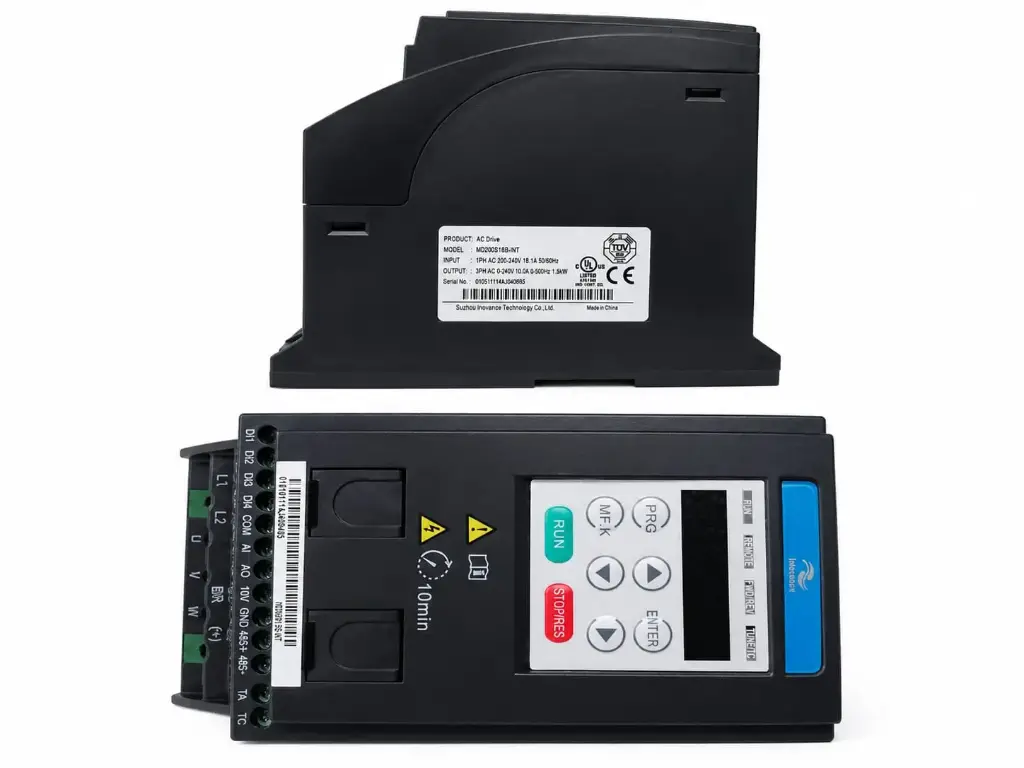

MD200S1.5B-INT
DESCRIPTION:
The MD200 series compact AC drives are available in single-phase 220 VAC and three-phase 380 VAC variants. These mini-AC drives are introduced by Inovance to meet the market demand for low power, small size, and cost-effective solutions. The MD200 series adopts the V/f control and sensor less vector control (SVC) modes and offers significant advantages such as high power density, high EMC, and high protection performance.
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Model Number | MD200S1.5B-INT |
| Manufacturer | Inovance |
| Product Series | MD200 Series |
| Product Type | Variable Frequency Drive (VFD) / AC Drive |
| Rated Power | 1.5 kW (2 HP) |
| Input Voltage | 1 Phase, 200-240 VAC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0 to Input Voltage |
| Rated Output Current | 8 A |
| Control Mode | V/F Control, Sensorless Vector Control (SVC) |
| Starting Torque | 150% at 3 Hz |
| Overload Capability | High overload capacity for acceleration applications |
| Braking Unit | Built-in Dynamic Braking Unit |
| Communication | Modbus RTU (Standard), CANlink (Variant) |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Overtemperature Protection |
| Maximum Output Frequency | Up to 500 Hz |
| Installation Type | Panel / Cabinet Mount |
| EMC Performance | Built-in EMC Filter (Category C3) |
| Typical Applications | Pumps, Fans, Conveyors, Mixers, Packaging Machines, General Industrial Automation |
| Key Features | Compact design, high power density, easy commissioning, energy-efficient motor control |
