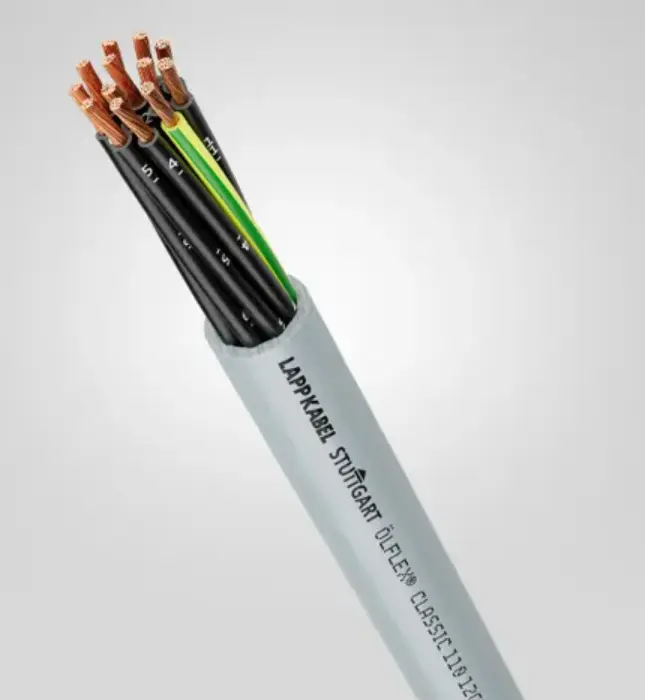

OLFLEX 110 3G1 SQMM

Benefits

• 145 standard articles with 2-100 cores in standard lengths and individual cuts are available.
• Space-saving due to reduced wall thicknesses.
• High electrical safety thanks to 4000 V test voltage.
• Oil resistance according to DIN EN 50290-2-22 (TM54).
• Certified quality and tested properties thanks to VDE registration.
• Tested resistance to ECOLAB® disinfectants and cleaning agents.
• Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.

Applications

• For universal use for wiring machine-internal and cross-plant control circuits.
• For fixed installation and occasional movement without tensile strain.
• Cable design allows flexible, continuously moving use in moving machine parts and in cable chains (depending on the article, see technical data or data sheet).
• Cable design also suitable for torsion applications in wind turbines.
• Suitable for medium mechanical stress.
• Can be used in dry and damp spaces.
• Flexible use at temperatures down to -15°C.
• The PVC outer sheath is resistant to acids and alkalis.
