OR45X4MMNBR-AV
DESCRIPTION:

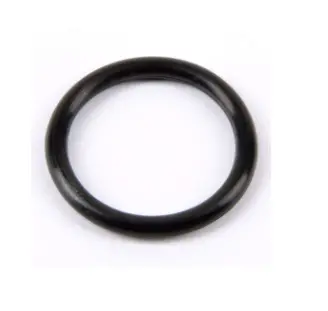

This NBR - Nitrile O-Ring has a diameter of 454x4 mm and is Black in color. The hardness of this O-ring 454x4 - NBR - Nitrile - 70 Shore A - Black - ORS135180 is 70. Alternative names for the compound are Nitrile Rubber
TECHNICAL DESCRIPTION:
| Seal type | O-ring |
| ID (Inner diameter) | 454 mm |
| CS (Cross Section) | 4 mm |
| Dimensions | 454x4 |
| Material | NBR - Nitrile |
| Hardness | 70 |
| Color | Black |
| Compound Number | 107019001 |
| DIN 3771 Size Chart | 454x4 |
| ISO 3601 Size Chart | 454x4 |
| SMS 1586 Size chart | 454 x 4 |
| Temperature Max | 100 ºC |
| Temperature Min | -30 ºC |
| Specific Gravity | 1,28 (+/- 0,03) g/cm3 |
| Compression Set | 11 % |
| Tensile Strength | 14,4 MPa |
| Ultimate Elongation | 389 % |
