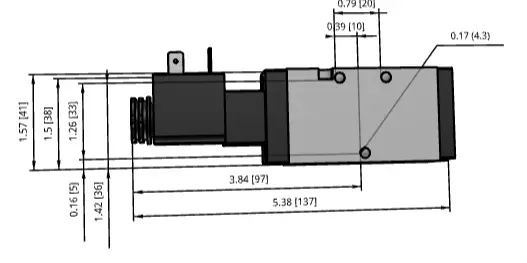

P2LAZ311ESNDBB49
DESCRIPTION:
The Viking Lite valve is a robust, versatile inline valve with compact installation dimensions that is well suited for general industrial applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications.
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Fluid Type | Air |
| Media | Air |
| Valve Type | 3-Way, 4-Way Directional Control Valve |
| Function | 3-Way & 4-Way, Solenoid Air Operated |
| Actuation Type | Solenoid Air Operated |
| Number of Positions | 2, 3 |
| Number of Ports | 5 |
| Override Functionality | Non-Locking and Locking Manual Overrides |
| Mounting Type | Inline, IEM Aluminum Bar |
| Number of Manifold Outlets | 10 |
| Port Sizes | 1/8", 1/4", 3/8" |
| Port Types | BSPP, NPT |
| Operating Pressure Range | 22 to 145 psig (1.5 to 10 bar) |
| Maximum Operating Pressure | 145 psig (10 bar) |
| Operating Temperature Range | -10°C to +50°C (+14°F to +122°F) |
| Maximum Operating Temperature | 50°C (122°F) |
| Minimum Operating Temperature | -10°C (14°F) |
| Flow Coefficient (Cv) | 0.6 to 2.5 Cv |
| Input Voltage | 24 VDC, 120 VAC |
| Electrical Connection | 22 mm, 3-Pin DIN 43650 Form B |
| Protection Rating | IP65 |
| Compliance | RoHS, CE |
| Lubrication Requirement | Non-Lube |
| Power Consumption | 2.5 W |
| Body Material | Anodized Aluminum |
| Seal Material | Nitrile |
