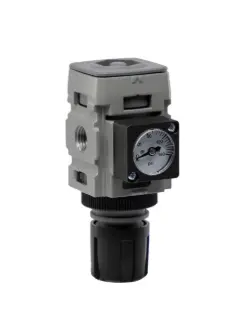

P3XRA14BNNN
DESCRIPTION:
P3XR is a 62mm lightweight regulator, 1/2" & 3/4" ported BSPP (NPT 1/2" only). Max P1 pressure of 16 bar with P2 ranges 0 to 4, 8 & 16 bar. Temp from -40°C to 60°C. Offering flow rates up to 134 dm³/s
TECHNICAL DESCRIPTION:
| Gauge Port Size: | 1/4 inch, 1/4 inch |
| Flow Rate: | ≥ 125 dm3/sec, ≥ 250 SCFM, 260 SCFM, 122 dm3/sec |
| Port Size: | 3/4 inch, 1/2 inch |
| Product Type: | Compact Regulator, Manual/Adjustable Pneumatic Regulator |
| Pressure Control Range: | 0 to 125 psig, 0 to 8 bar, 0 to 125 psig, 0 to 8 bar |
| Maximum Inlet Pressure Rating: | 0 to 232 psig, 0 to 16 bar |
| Pressure Gauge: | No |
| Pressure Regulator Type: | Relieving |
| Port Type: | BSPP, NPT |
| Port Type: | BSPP |
| Operating Temperature: | -40 to 160 °F, -40 to 60 °C |
| Body Material: | High Tech Polymer |
| Seal Material: | Nitrile Butadiene Rubber (NBR) |
| Weight: | 0.36 kg, 0.8 lb |
| Pressure Control Range (bar): | 0 to 8 |
| Port Size: | 1/2" |
