Part No: 0102 14 00
Description: These "universal" fittings provide users with numerous connection options for a wide variety of tube materials without the need for tube threading or soldering. This range guarantees excellent long-term sealing and performance.
Product: Brass Compression Fittings
UOM: Nos

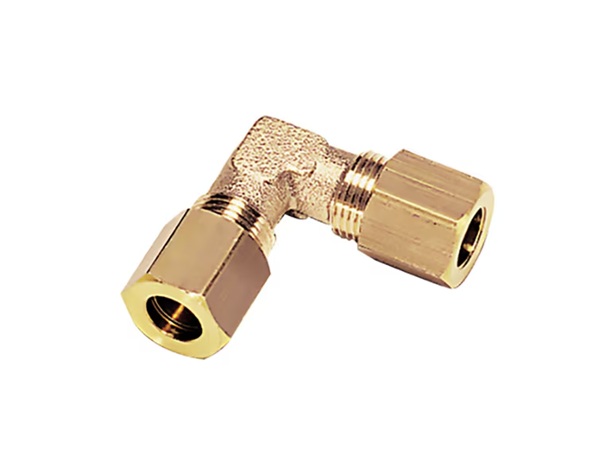

Product Image:
Technical Specifications:
| Product Type: | Brass compression fittings |
| Nut Material: | BRASS |
| Sleeve Material: | BRASS |
| Minimum Operating Temperature: | -40 °C |
| Maximum Operating Temperature: | 100 °C |
| Quantity per Box: | 10 |
| Weight: | 0.133 kg |
| Application: | Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery |
| Media: | Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants |
| Specifications Met: | CNOMO: E07.21.115N (for robotic equipment in the automotive industry), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX) |
| Connection 2 Tube O.D. (mm): | 14 |
| Shape: | Elbow 90° tube / tube |
