Part No: 0121 17 17
Description: Parker offers a wide range of adaptors compatible with the various Parker Legris fitting systems. This range of products provides a complete solution covering numerous applications, both in non-corrosive and corrosive environments.
Product: Adapter
UOM: Nos

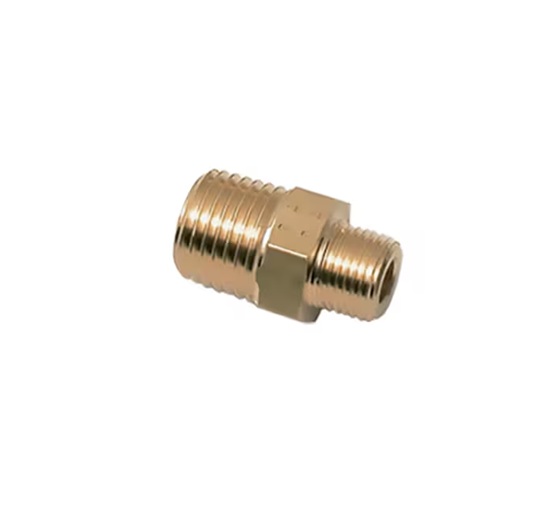

Product Image:
Technical Specifications:
| Connection 2 Thread Size (metric): | R3/8 |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Shape: | Straight Adaptor |
| Connection 1 Thread Size (metric): | R3/8 |
| Maximum Operating Temperature: | 302 °F, 150 °C |
| Maximum Operating Pressure: | 1000 psi, 60 bar |
| Connection 2 Style: | BSPT |
| Connection 1 Style: | BSPT |
| Body Material: | BRASS |
| Style: | Male |
Related Document:
Parker_Legris_Master_Catalog_3500LEGNYC.pdf
