Part No: 0133 66 21 39
Description: Brass fittings for quick connection of self-fastening hose to a male port. Available in 1/8" to 3/4" ID. This range of fittings is designed to meet the requirements of the automotive and robotics industries - CNOMO manufacturing quality.
Product: Barbed Fitting
UOM: Nos

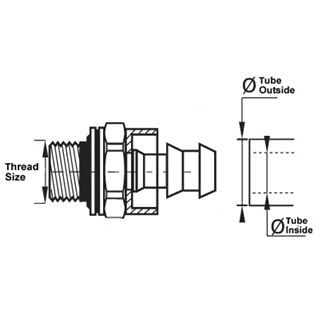

Product Image:
Technical Specifications:
| Connection Thread Size: | G 1/2 |
| Body Material: | Brass |
| Tube Inside Diameter: | 15.9 mm |
| Maximum Operating Pressure: | 16 bar |
| Minimum Operating Temperature: | -20 °C |
| Maximum Operating Temperature: | 100 °C |
| Quantity per Box: | 10 |
| Weight: | 0.063 kg |
| Application: | Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery |
| For Fluid Type: | Coolants, Compressed Air |
| Specifications Met: | RoHS DI: 2002/95/EC, RoHS 2011/65/EC, PED DI: 97/23/EC, REACH DI: 1907/2006, CNOMO E07.21.115N |
| Shape: | Male Self-fastening Barb Connector with Bi-material Seal |
| Product Type: | Self-Fastening Barb Connectors for NBR Hose |
| Tube Outside Diameter: | 23 mm (O.D.) |
Related Documents:
Parker Legris Rectus Distribution Catalogue.pdf
