Part No: 0222 13 00
Description: Parker Legris has designed different accessories to protect operators and equipment, and prevent accidental disconnection of tubing. Colour-coding also allows for fluid circuit identification.
Product: Push-To-Connect Fitting
UOM: Nos

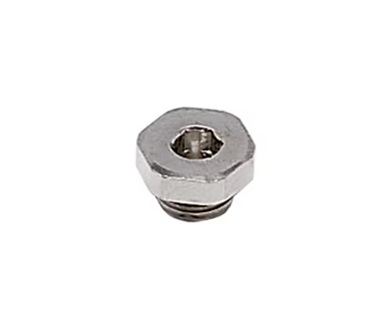

Product Image:
Technical Specifications:
Brand: | Parker, Legris |
Body Material: | NICKEL PLATED BRASS, Brass, Nickel-plated |
O-Ring Material: | NBR |
Division: | Low Pressure Connectors Europe Division |
Maximum Operating Pressure: | 20 barg |
Industry: | Industrial Manufacturing Equipment, Industrial Processing, Chemicals Processing, Electronics, Semiconductor, Power Generation, Renewable Energy, Transportation, Off-road Machinery |
Minimum Operating Temperature: | -20 °C, -10 °C |
Maximum Operating Temperature: | 80 °C, up to 80 °C |
Vacuum Pressure Rating: | na, 755 mm-Hg |
Connection 1 Type: | BSPP |
Quantity per Box: | 10, 10 |
Weight: | 0,010 kg, 0.010 kg |
Application: | Robotics, Automotive Process, Pneumatics, Semi-Conductors, Textile, Water Treatment, Beverage Dispensers, Robotics, Automotive, Pneumatics, Textile, Packaging, Food & Beverage, Semiconductor, Vacuum |
Media: | LF3000, LIQUIfit |
Technology: | Fluid & Gas Handling |
Product Type: | Adaptors, Plugs and Manifolds |
Product Style: | Plugs |
Product Series: | LF 3000®, LF 3600, LF 3800 |
Shape: | Straight |
Connection 1 Type: | Male, BSPP |
Connection 1 Size: | G 1/4 inch Thread |
Hex Size: | 16 |
For Fluid Type: | Air (Compressed Air) |
Seal Material: | NBR |
Operating Pressure: | 20 to 60 bar |
Product Type: | Accessories for Push-In Fittings |
Connection 1 Thread Size: | G 1/4 |
Product Style: | Internal Hexagonal Plug Male Stud Thread |
Related Documents:
Parker Legris Rectus Distribution Catalogue.pdf
Parker_Legris_Master_Catalog_3500LEGNYC.pdf
