Part No: 0432 10 17

https://shop.arvihitech.co.in/web/image/product.template/143/image_1920?unique=e493784

Description This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.

ProductValve

UOMNos

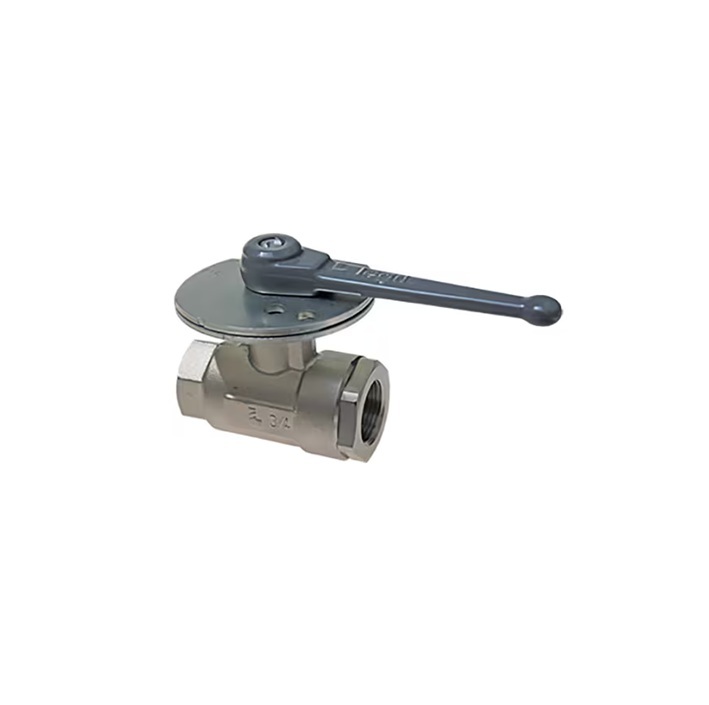

Product Image:

Technical Specifications:

Minimum Operating Temperature: up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C
Connection 1 Thread Size (metric): G3/8
Brand: Legris
Division: Low Pressure Connectors Europe Division
Industry: Industrial Manufacturing Equipment
Application: Pneumatics, Process Control, Safety, Fluid Control
Connection 1 Thread Style: BSPP
Technology: Fluid & Gas Handling, Process Control, Pneumatics
Product Type: Ball Valves
Diameter Nominal (DN): 10
Product Style: Lockable Female Ball Valve
Product Series: Universal Series
Function: 2-Way
Operation Type: Lever-operated
Shape: Inline
Maximum Operating Pressure: Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Maximum Flow Rate: n/a L/min
Flow Rate: n/a L/min
Connection Type: BSPP
Connection Size: G3/8
Orifice Size: 10 mm
Configuration: 2/2
For Fluid Type: Air, Inert Gases, Water
Maximum Operating Temperature: 80 °C
Mounting Type: Inline
Actuation Type: Manual
Specifications Met: DI: 97/23/EC (module PED A - diameters greater than 25 mm),
DI: 2006/42/EC (Machinery Directive), RoHS, REACH
Body Material: Nickel-Plated Brass
Seat Material: Rilsan Graphited
Seal Material: NBR
Stem Material: Brass
O-Ring Material: NBR
Handle Type: Grey, Long Lever (ZAMAK)
Weight: 0.460 kg, 1.014 lb
Quantity per Box: 2
Region of Origin: France
Stem Seal Material: NBR
Ball Seal Material: NBR
Shape: 2/2 in-line lockable ball valve female
Handle: ZAMAK
Product Type: Universal Series, Lockable

Related Documents:

Parker Legris Rectus Distribution Catalogue.pdf
