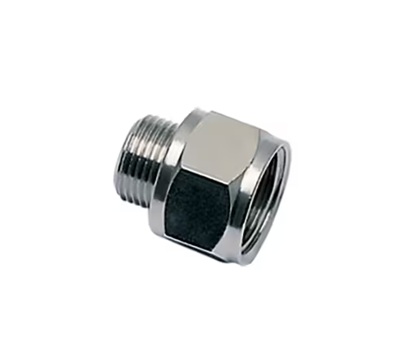

Part No: 0906 00 13
Description: Parker Legris offers a wide range of adaptors and manifolds compatible with the various Parker Legris fitting systems. This range of products provides a complete solution covering numerous applications, both in non-corrosive and corrosive environments.
Product: Adapter
UOM: Nos
Product Image:
Technical Specifications:
| Division: | Low Pressure Connectors Europe Division |
| Product Type: | Adaptors |
| Product Style: | Increaser Male to Female |
| Materials of Construction: | n/a (Nut) |
| Maximum Operating Pressure: | 60 barg |
| Connection 1 Type: | BSPP / BSPP |
| Minimum Operating Temperature: | -10 °C |
| Connection 1 Thread Size: | G 1/4 / G 1/4 |
| Maximum Operating Temperature: | 80 °C |
| Quantity per Box: | 50 |
| Weight: | 0.019 kg |
| Application: | Packaging, Robotics, Textile, Pneumatics, Automotive Process, Food Processing |
| For Fluid Type: | Industrial Fluids |
| Nut Hex Size: | 17 mm |
| Body Material: | Brass, Nickel-plated |
Related Documents:
Parker_Legris_Master_Catalog_3500LEGNYC.pdf
