Part No: 0913 00 27
Description: Parker Legris offers a wide range of adaptors and manifolds compatible with the various Parker Legris fitting systems. This range of products provides a complete solution covering numerous applications, both in non-corrosive and corrosive environments.
Product: Adapter
UOM: Nos

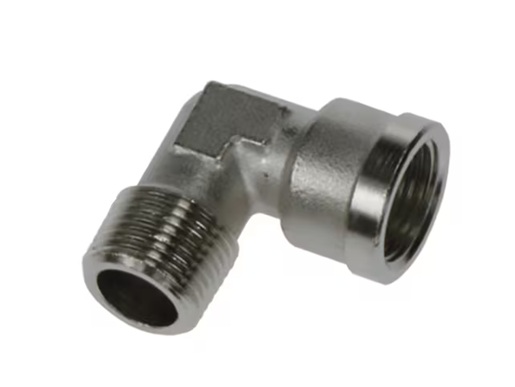

Product Image:
Technical Specifications:
| Division: | Low Pressure Connectors Europe Division |
| Product Type: | Adaptors |
| Product Style: | Stud Adaptor Female |
| Materials of Construction: | n/a (Nut) |
| Maximum Operating Pressure: | 60 barg |
| Shape: | Elbow |
| Connection 1 Type: | BSPT / BSPP |
| Minimum Operating Temperature: | -10 °C |
| Maximum Operating Temperature: | 80 °C |
| Connection 1 Thread Size: | R 3/4 / G 3/4 |
| Quantity per Box: | 10 |
| Weight: | 0.1 kg |
| Application: | Packaging, Robotics, Textile, Pneumatics, Automotive Process, Food Processing |
| For Fluid Type: | See Part Technical Specs. |
| Body Material: | Brass, Nickel-plated |
Related Documents:
Parker_Legris_Master_Catalog_3500LEGNYC.pdf
