Part No: 1025P14 01
Description: Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties. Special grade of semi-rigid polyamide manufactured according to our Eco-Design approach.
Product: Tube
UOM: Rolls

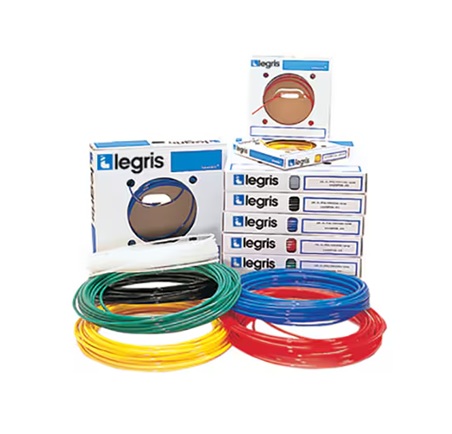

Product Image:
Technical Specifications:
| Maximum Operating Pressure: | 50 bar |
| Tube O.D. (mm): | 14 |
| Tube I.D. (mm): | 12 |
| Tubing Material: | PA |
| Minimum Operating Temperature: | -40 °C |
| Color: | BLACK |
| Maximum Operating Temperature: | up to 100 °C See the Graph “Working Pressure/Working Temperature” |
| Vacuum Pressure Rating: | 755 mm-Hg |
| Weight: | 1.5 kg/package |
| Number of Tubes: | 1 |
| Application: | Packaging, Tooling, Compressed Air, Motion Technologies, Robotics, Industrial Machinery |
| Media: | Air (Compressed Air: Semi-Rigid PA), Air (Compressed Air: Rigid PA), Industrial Fluids (Rigid PA), Industrial Fluids (Semi-Rigid PA), Lubricants (Rigid PA) |
| Specifications Met: | RoHS 2002/95/EC, 2011/65/EC (Industrial), DIN 74324 -1 (for Chemical Performance and Resistance in Transportation), REACH 1907/2006 (Industrial), ISO 7682 (for Chemical Performance and Resistance in Transportation), PED 97/23/EC (Industrial), DIN 73378 (for Chemical Performance and Resistance in Transportation) |
| Length (m): | 25 |
Related Documents:
Parker Legris Rectus Distribution Catalogue.pdf
