Part No: 4810 20 27
Description: Stainless steel series ball valves can withstand corrosive fluids and environments. With full flow, high pressure and temperature capabilities, these valves are suitable for many applications.
Product: Valve
UOM: Nos

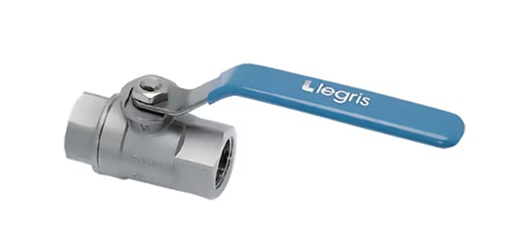

Product Image:
Technical Specifications:
| Connection 1 Thread Size (metric): | G3/4 |
| Brand: | Legris |
| Division: | Low Pressure Connectors Europe Division |
| Industry: | Industrial Manufacturing Equipment |
| Application: | Pneumatics, Process Control, Safety, Fluid Control, Aviation, Chemical, Semiconductors, Medical, Petrochemical, Laboratories, Pharmaceutical |
| Product Type: | Ball Valves |
| Product Style: | Female Ball Valve |
| Product Series: | Stainless Steel Series |
| Function: | 2-Way |
| Operation Type: | Lever-operated |
| Shape: | Inline |
| Maximum Operating Pressure: | 40 bar, 4.0 MPa, 580 psi |
| Flow Rate: | n/a L/min |
| Connection Type: | BSPP |
| Connection Size: | G3/4 |
| Orifice Size: | 20 mm |
| Configuration: | 2/2 |
| For Fluid Type: | Air, Inert Gases, Water |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Maximum Operating Temperature: | 150 °C, 302 °F |
| Mounting Type: | Inline |
| Actuation Type: | Manual |
| Body Material: | Stainless Steel 316L |
| Seat Material: | PTFE |
| Seal Material: | PTFE |
| Stem Material: | Stainless Steel 316L |
| Ball Material: | Stainless Steel 316L |
| O-Ring Material: | PTFE |
| Handle Type: | Blue, Long Lever (Stainless Steel) |
| Weight: | 0.42 kg, 0.924 lb |
| Quantity per Box: | 1 |
| Region of Origin: | Italy |
| Stem Seal Material: | PTFE |
| Gripping Ring Material: | Stainless Steel |
| Shape: | 2/2 in-line stainless ball valve female |
| Body Material: | STAINLESS STEEL 316L |
