Part No: 6402 20 27
Description: This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.
Product: Valve
UOM: Nos

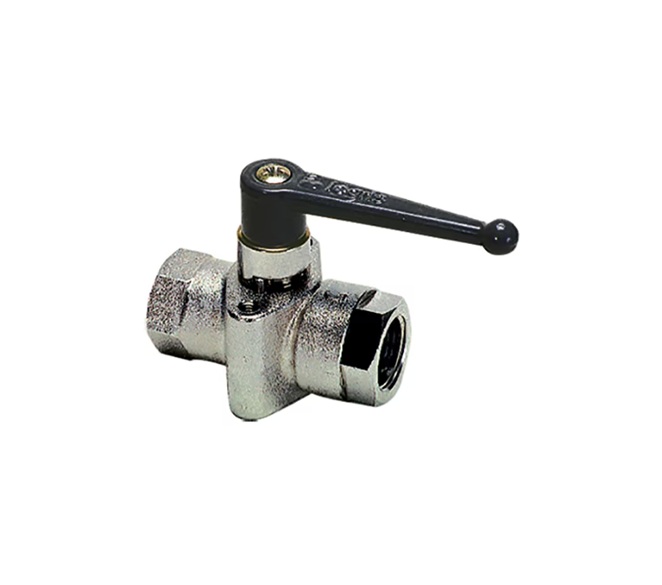

Product Image:
Technical Specifications:
| Minimum Operating Temperature: | up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C |
| Diameter Nominal (DN): | 20 |
| Connection 1 Thread Size (metric): | G3/4 |
| Brand: | Legris |
| Division: | Low Pressure Connectors Europe Division |
| Industry: | Industrial Manufacturing Equipment |
| Application: | Pneumatics, Process Control, Safety, Fluid Control |
| Connection 1 Thread Style: | BSPP |
| Technology: | Fluid & Gas Handling, Process Control, Pneumatics |
| Product Type: | Ball Valves |
| Product Style: | Female Ball Valve for Screw Fixing |
| Product Series: | Universal Series |
| Function: | 2-Way |
| Operation Type: | Lever-operated |
| Shape: | Inline |
| Maximum Operating Pressure: | Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa |
| Connection Type: | BSPP |
| Connection Size: | G3/4 |
| Orifice Size: | 20 mm |
| Configuration: | 2/2 |
| For Fluid Type: | Air, Inert Gases, Water |
| Maximum Operating Temperature: | 80 °C |
| Mounting Type: | Screw |
| Actuation Type: | Manual |
| Specifications Met: | DI: 97/23/EC (module
PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), RoHS, REACH |
| Body Material: | Nickel-Plated Brass |
| Seat Material: | Rilsan Graphited |
| Seal Material: | NBR |
| Stem Material: | Brass |
| O-Ring Material: | NBR |
| Handle Type: | Grey, Long Lever (ZAMAK) |
| Weight: | 0.830 kg, 1.830 lb |
| Quantity per Box: | 2 |
| Region of Origin: | France |
| Stem Seal Material: | NBR |
| Ball Seal Material: | NBR |
| Shape: | 2/2 in-line for screw fixing ball valve female |
| Handle: | ZAMAK |
| Product Type: | Universal and Universal Customised Series |
Related Documents:
Parker Legris Rectus Distribution Catalogue.pdf
