Part No: 7881 17 17
Description: Blocking fittings, mounted in pairs on a cylinder, lock the piston by simultaneously cutting off the supply and exhaust when the pilot signal is removed.
Product: Piloted Fitting
UOM: Nos

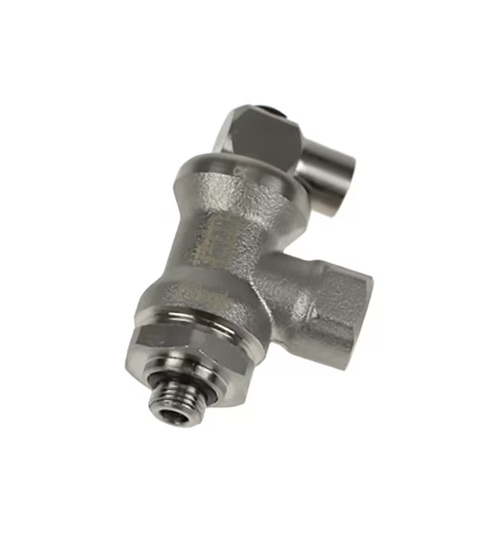

Product Image:
Technical Specifications:
Connection 1 Thread Size: | G3/8 |
Maximum Operating Temperature: | 70 °C |
Connection 2 Type: | Female BSPP |
Connection 2 Thread Size: | G3/8 |
Pilot Port Type: | Metric Thread : M5 |
Body Material: | NICKEL PLATED BRASS |
O-Ring Material: | NBR |
Thread Sealant Material: | na |
Maximum Operating Pressure: | 10 bar |
Minimum Operating Temperature: | -20 °C |
Quantity per Box: | 1 |
Weight: | 0.208 kg |
Industry Application: | Robotics, Machine Tools, Textile, Packaging, Pneumatics, Automotive Process |
Media: | Compressed air |
Specifications Met: | ROHS, PED, REACH |
Product Type: | Blocking Fittings |
Connection 1 Type: | Male BSPP |
Shape: | Blocking fitting female |
