Part No: 7996 04 00
Description: Non-return valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.
Product: Non-Return Valves
UOM: Nos

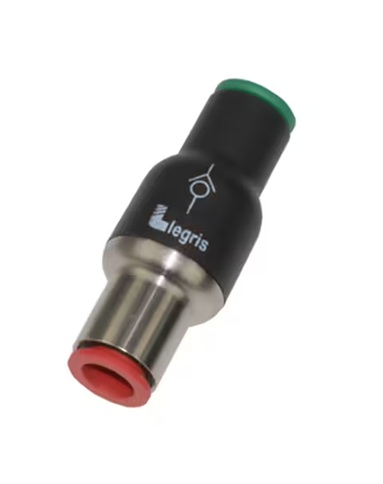

Product Image:
Technical Specifications:
| Connection 2 Size: | 4 MM (O.D) |
| Flow Rate: | 350 NL/MIN |
| Connection 1 Size: | 4 MM |
| Connection 1 Type: | Tube |
| Flow Direction: | In-Line Version |
| Brand: | Parker, Legris |
| Industry: | Industrial Manufacturing Equipment, Industrial Processing |
| Application: | Automotive Process, Robotics, Textile, Packaging, Pneumatics |
| Technology: | Pneumatics |
| Product Type: | Non-Return Valves |
| Product Style: | Check Valve |
| Maximum Operating Pressure: | 10 bar |
| Minimum Operating Pressure: | 1 bar |
| Shape: | In-line non-return valve |
| Configuration: | Tube to Tube |
| Connection 1 Type: | Tube |
| Connection 1 Size: | 4 mm |
| Connection 2 Type: | Tube |
| Connection 2 Size: | 4 mm |
| Maximum Operating Temperature: | 70 °C |
| Minimum Operating Temperature: | 0 °C |
| For Fluid Type: | Air |
| Maximum Flow Rate: | 350 NL/min |
| Flow Direction: | In-Line Version |
| Body Material: | Technical polymer |
| Seal Material: | NBR |
| Weight: | 0.008 kg |
| Length: | 38.5 mm |
| Quantity per Box: | 10 |
| Thread Material: | Nickel-plated Brass |
| Division: | Low Pressure Connectors Europe Division |
| Cracking Pressure: | 0.3 bar |
