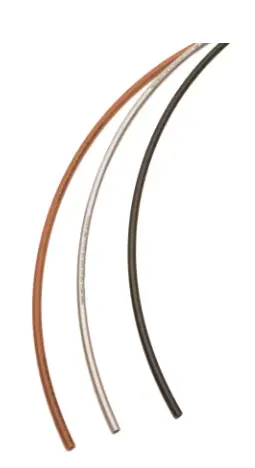

PAT6-BLK-500
DESCRIPTION:
Nylon Pure Air Tubing has exceptional cleanliness properties and superior chemical and UV light resistance. Ideal choice for pure air and gas distribution systems.
TECHNICAL DESCRIPTION:
| Order Size: | 3/8 |
| Standard Pack Qty (ft): | 500 |
| Specifications Met: | n/a |
| Application: | Instrumentation, Process Piping Systems, Pneumatics, Semiconductor |
| Tube Inside Diameter: | 0.251 inch, 6.4 mm |
| Tube Outside Diameter: | 3/8 inch, 9.5 mm |
| Color: | Black |
| Maximum Operating Pressure: | 350 psi, 24.1 bar |
| Minimum Burst Pressure: | 1400 psi, 96.4 bar |
| Maximum Operating Temperature: | 200 °F, 93 °C |
| Minimum Operating Temperature: | -70 °F, -57 °C |
| Minimum Bend Radius: | 1-1/2 inch, 38.1 mm |
| Compatible Fitting: | Flow Controls, Prestolok®, Global Connect, NTA®, Compression, Fast & Tite®, Poly-Tite, Compress-Align®, Hi-Duty |
| Media: | Air, Industrial Gases |
| Weight: | 0.027 lb/ft, 0.04 kg/m |
| Tube Material: | Polyamide (PA) |
| Length per Package: | 152.4 m, 500 ft |
| Cover Material: | n/a |
| Size: | -6 |
