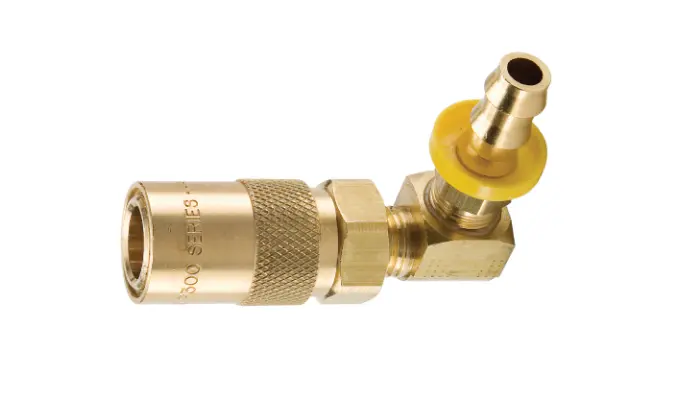

PC514-BP
DESCRIPTION:
Moldmate series coupler with 90 degree Push-Lok hose barb, unvalved
TECHNICAL DESCRIPTION:
| Application: | Hydraulics, Mold Coolant |
| Coupling Half: | Female Coupler |
| Valve Style: | Unvalved |
| Maximum Operating Pressure: | 200 psi |
| Product Type: | Manual Connect |
| Flow Rate: | 12 |
| Body Material: | Brass |
| Maximum Operating Temperature: | 400 °F |
| Body Size (inch): | 1/2 |
| Hex Size: | na inch |
| Connection Type: | Push-Lok hose barb, 90 degree |
| Minimum Operating Temperature: | -20 °F |
| Connection Thread Size (inch): | na |
| Seal Material: | Silicone |
| Connection Hose I.D. (inch): | 1/2 |
| Plating Type: | na |
