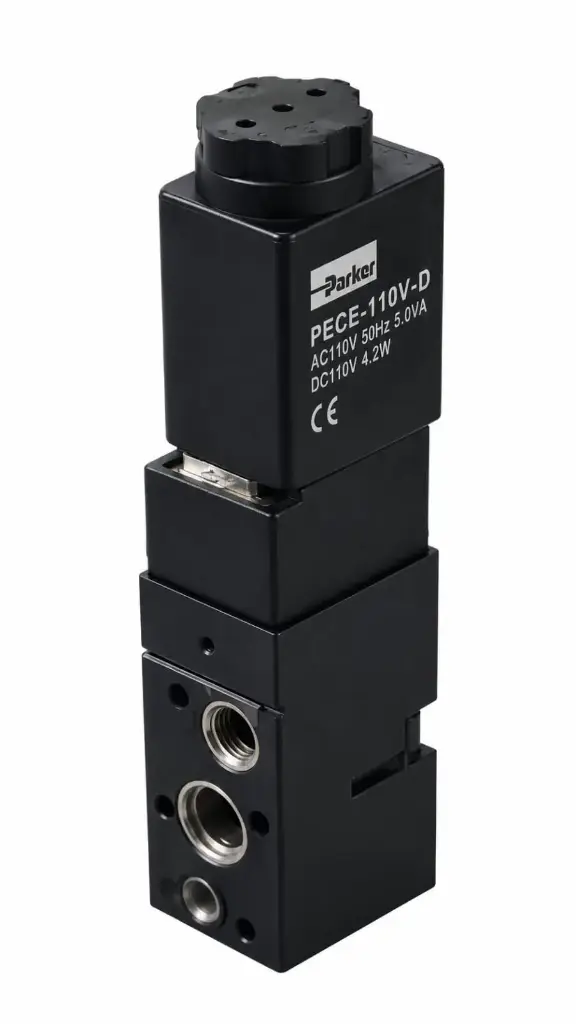

PEC5-110V-D
DESCRIPTION:
PEC5-110V-D Solenoid Coil is an AC-operated electromagnetic coil designed for use with compatible solenoid valves. It operates on 110V AC, 50Hz power supply and has a power consumption of 5.0 VA. When energized, the coil generates a magnetic field that actuates the valve armature, enabling reliable control of pneumatic or fluid systems in industrial automation applications.
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Product Code | PEC5-110V-D |
| Product Type | Solenoid Valve Coil |
| Operating Voltage | 110V AC |
| Frequency | 50 Hz |
| Power Consumption | 5.0 VA |
| Coil Type | Electromagnetic AC Coil |
| Function | Actuates solenoid valve by generating magnetic force |
| Duty Cycle | Continuous Duty (Typical) |
| Insulation Class | Industrial Grade Insulation |
| Electrical Connection | DIN Connector / Lead Wire Type (depending on valve design) |
| Housing Material | Encapsulated Thermoplastic / Epoxy Resin |
| Mounting | Fits Compatible Solenoid Valve Armature Tube |
| Application | Pneumatic systems, fluid control valves, automation equipment |
| Protection | Suitable for industrial environments when properly installed |
| Color | Black (Typical) |
