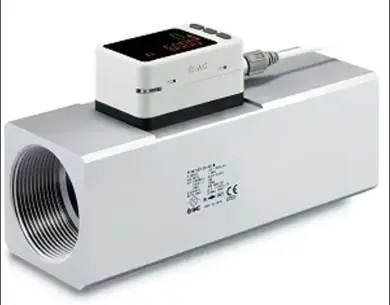

PF3A706H-14-FS
DESCRIPTION:
A digital air flow switch/sensor designed for accurate monitoring of compressed air and nitrogen in industrial pneumatic systems. It features a dual-screen digital display, high flow measurement capability, and analog output for process monitoring and energy management.
TECHNICAL DESCRIPTION:
| Manufacturer | SMC Corporation |
| Product Type | Digital Flow Switch / Digital Air Flow Sensor |
| Series | PF3A7H Series |
| Applicable Fluid | Compressed Air, Nitrogen |
| Flow Range | 60 to 6000 L/min |
| Flow Detection Method | Thermal Mass Flow Sensor |
| Pressure Range | 0.1 to 1.5 MPa |
| Proof Pressure | 2.25 MPa |
| Port Size | 1-1/2 in. |
| Thread Type | G (ISO 1179-1) (FS configuration) |
| Power Supply | 24 VDC ±10% |
| Output | PNP Switching Output with 4–20 mA Analog Current Output and External Input |
| Display | 2-screen, 3-color LCD display (Flow, Pressure, Temperature) |
| Display Accuracy | ±3.0% Full Scale |
| Repeatability | ±1.0% Full Scale |
| Response Time | Selectable: 1 s, 2 s, or 5 s |
| Protection Rating | IP65 |
| Operating Temperature | 0 to 50°C |
| Electrical Connection | 3 m lead wire with M12 connector |
| Applications | Compressed air consumption monitoring, leak detection, pneumatic equipment monitoring, factory automation, energy management, and process control systems. |
