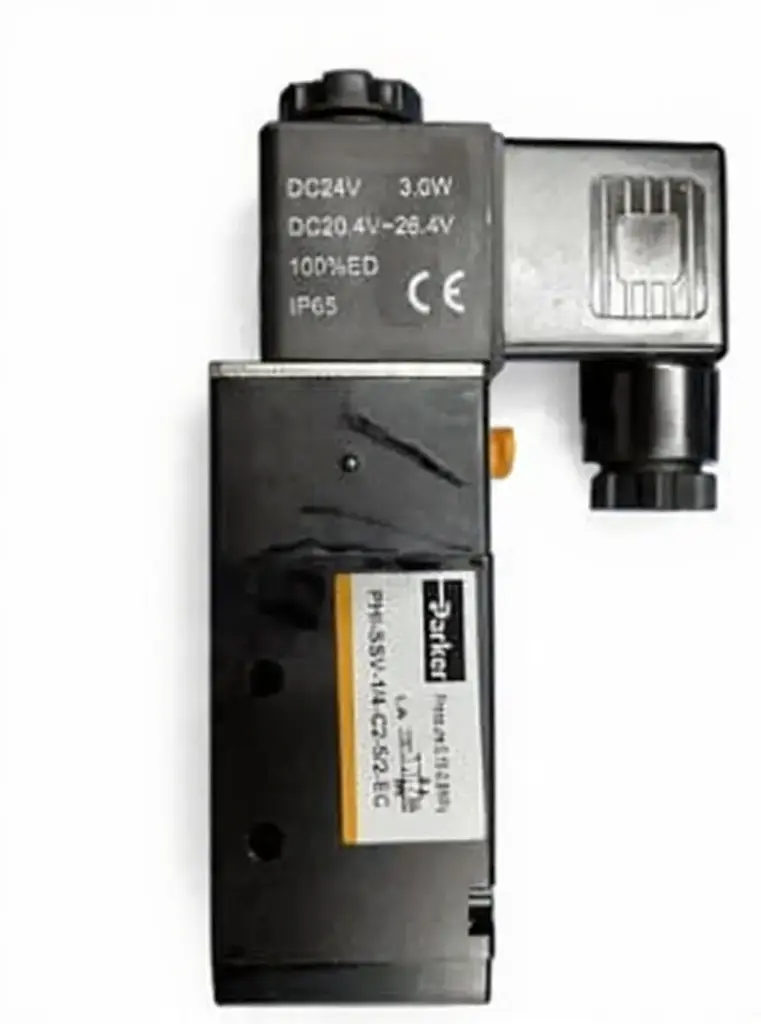

PHI-SSV-1/4-DC24V-5/2
DESCRIPTION:
A 5/2-way pneumatic solenoid valve with a 24 VDC coil and 1/4-inch ports, designed to control the directional flow of compressed air for double-acting pneumatic cylinders and actuators in industrial automation systems
TECHNICAL DESCRIPTION:
| Product Type | Pneumatic Directional Solenoid Valve |
| Valve Function | 5/2-Way (5 Ports, 2 Positions) |
| Actuation | Solenoid Operated |
| Coil Voltage | 24 VDC |
| Port Size | 1/4 in. |
| Port Thread | G 1/4 or Rc 1/4 (depends on model variant) |
| Working Medium | Filtered Compressed Air |
| Operating Pressure | Typically 0.2–0.8 MPa (2–8 bar) |
| Proof Pressure | 1.0 MPa |
| Body Material | Aluminum Alloy |
| Seal Material | NBR (standard) |
| Operating Temperature | -5°C to +50°C (non-freezing) |
| Power Consumption | Approximately 2 W |
| Manual Override | Yes |
| Mounting Style | Inline or Manifold Mount |
| Applications | Pneumatic cylinders, industrial automation equipment, packaging machinery, material handling systems, process automation, and factory pneumatic control circuits. |
