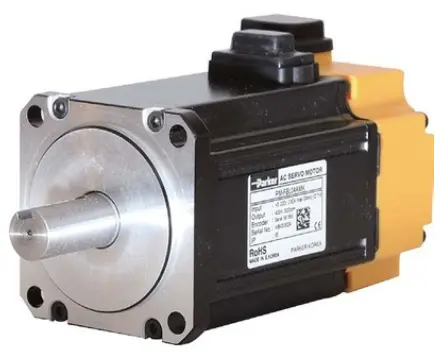

PM-FCL10AMK

DESCRIPTION:

AC servo motor with 19-bit BiSS-C feedback + keyway shaft - Parker Hannifin (P series) - 3.18Nm / 28.1in-lb torque - 3000rpm - rated current 5.83A - 1kW / 1000W - 80mm frame size - IP67 - Flange mounting

TECHNICAL DESCRIPTION:

Main function: AC Servo motor

Product series / family name: Rotary servo motors

Sub-range name: P series

Functions: AC servo motor

Design: 19-bit BiSS-C feedback

keyway shaft: Rated current 5.83A

Rated active power (kW): 1kW / 1000W

Rotational speed: 3000rpm

Torque: 3.18Nm / 28.1in-lb

Moment of inertia: 1.62kg.cm2 0.00143in-lb-sec2

Mounting mode: Flange

Degree of protection: IP67

Dimensions: 80mm frame size

Ambient air temperature for operation: 0...+40 °C

Benefits: Position Profile, Profile Velocity, Profile Torque, Interpolated Position, Homing, Cyclic Synchronous Position, Velocity and Torque
