PN251-25
DESCRIPTION:

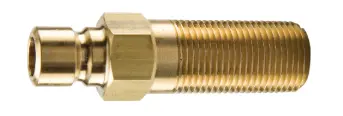

Moldmate series brass extension nipple, unvalved
TECHNICAL DESCRIPTION:
| Application: | Hydraulic, mold coolant |
| Coupling Half: | Male Nipple |
| Valve Style: | Unvalved |
| Maximum Operating Pressure: | 200 psi |
| Product Type: | Manual Connect |
| Flow Rate: | 3 |
| Maximum Operating Temperature: | 400 °F |
| Body Material: | Brass |
| Hex Size: | 7/16 inch |
| Body Size (inch): | 1/4 |
| Minimum Operating Temperature: | -20 °F |
| Connection Type: | Male NPTF (extended length) |
| Connection Thread Size (inch): | 1/8 - 27 |
| Seal Material: | na |
| Connection Hose I.D. (inch): | na |
| Plating Type: | na |
