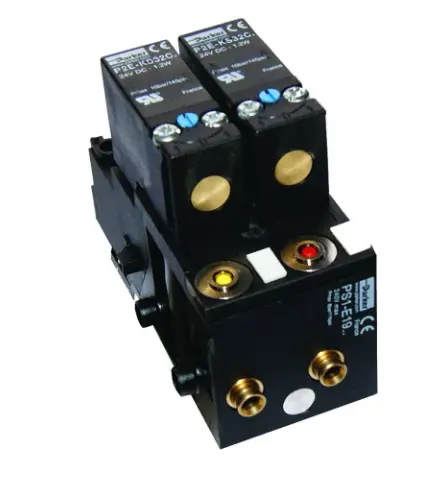

PS1-E116
DESCRIPTION:
The PS1E series valve is an internal air piloted stacking style valve with plug-in coils. Available valve functions are 3/2, and 5/2 single and double solenoid. Each valve is individually wired. Surge suppressors with an indicating LED are available.
TECHNICAL DESCRIPTION:
| Number of Positions: | 2 |
| Number of Ports: | 3 |
| Actuation Type: | Solenoid Air Operated |
| Override Functionality: | Non-Locking and Locking Manual Overrides |
| Mounting Type: | Stacking |
| Port Size: | 6mm |
| Port Type: | Tube Push-In Connections |
| Minimum Flow Rate: | 0.14 Cv |
| Maximum Flow Rate: | 0.16 Cv, n/a |
| Input Voltage: | 12 to 48VDC, 120/240VAC |
| Pressure Rating: | 40 to 120 psig, 3 to 8.2 bar |
| Minimum Operating Pressure: | 40 psig |
| Operating Temperature: | -15 to +60 °C, +5 to +140 °F |
| Media: | Air |
| Lubricant: | Lubricated or Non-Lubricated air |
| Power Consumption: | 1.2W, 1.6VA |
| Body Material: | Glass Filled Polyamide |
| Seal Material: | Poppet: Polyurethane | Seals: Nitrile (Buna N) |
| Function: | 3/2 Way Normally Closed |
