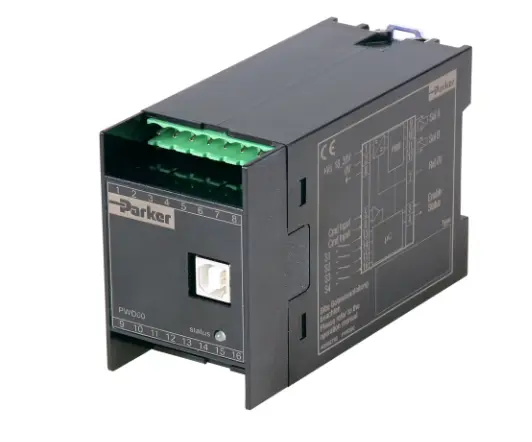

PWDXXA-400
DESCRIPTION:
Parker digital amplifier modules series PWD00A-400 combine all necessary functions for the optimal operation of proportional directional control valves without position sensor.
TECHNICAL DESCRIPTION:
| Product Series: | Electronic module |
| Input Voltage: | 18 - 30 V DC |
| Actuation Type: | N/A |
| Mounting Type: | Snap-on mounting |
| Mounting Position: | Unrestricted |
| Body Material: | Polycarbonate |
| Function: | Operation of proportional DC valves |
| Maximum Operating Pressure: | N/A |
| Maximum Flow Rate: | N/A |
| Maximum Operating Temperature: | 60 °C |
| Minimum Operating Temperature: | -20 °C |
| Seal Material: | N/A |
| For Fluid Type: | N/A |
| Interface Type: | USB type-B |
| Input Voltage: | 18 to 30 VDC |
| Operating Current: | 2.2 A |
| Specifications Met: | IP20 acc. EN 60529; V0 acc. UL 94; EMC EN 50081-2, EN 50082-2 |
| Electrical Connection: | Screw terminals 0.2 to 2.5 mm2, disconnectable |
| Cable Type: | 1.5 MM2 overall braid shield for supply voltage and solenoids (AWG16); 0.5 MM2 overall braid shield for sensor and signal (AWG20) |
| Cable Length: | 50 m |
| Weight: | 0.16 kg |
