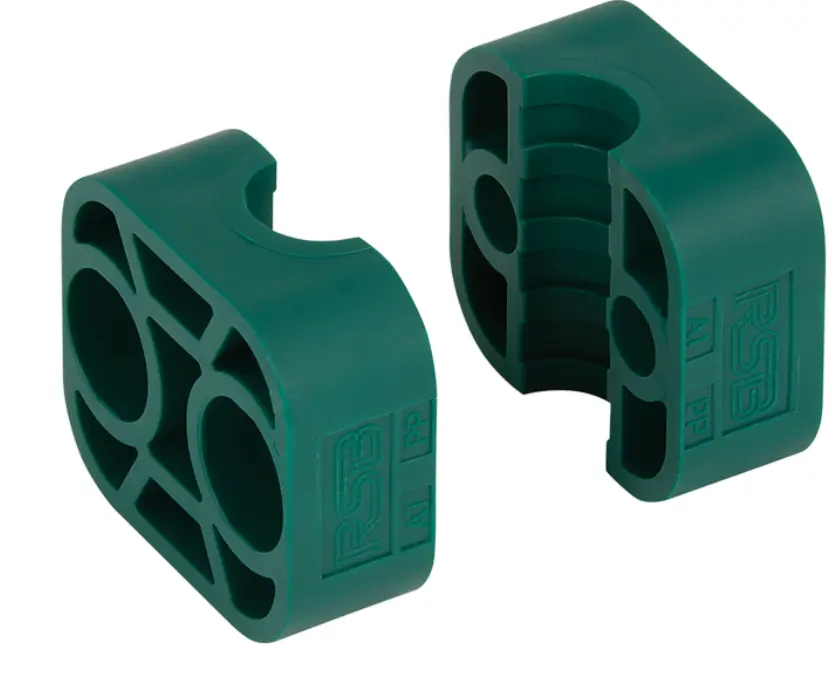

RAP2-650.8
DESCRIPTION:
RAP2-650.8 is a Parker EO Series A Light Duty Tube Clamp designed according to DIN 3015-1 standards. It is used to securely support and fix hydraulic, pneumatic, and industrial tubing, reducing vibration, noise, and mechanical stress in pipe installations. The clamp is suitable for tubes with an outside diameter of 50.8 mm (2 inches).
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Product Code | RAP2-650.8 |
| Product Type | Tube Clamp, Series A (Light Duty) |
| Manufacturer | Parker Hannifin (EO Tube Clamp Series) |
| Standard | DIN 3015-1 |
| Clamp Size Group | Size 6 |
| Tube Outside Diameter (OD) | 50.8 mm (2 in.) |
| Material (Clamp Body) | Polypropylene (PP) |
| Clamp Surface | Ribbed/Profiled with tension clearance |
| Installation Type | Single Tube Clamp |
| Operating Purpose | Tube and pipe support, vibration and noise reduction |
| Application | Hydraulic lines, pneumatic systems, industrial piping |
| Construction | Two-piece clamp body with mounting hardware |
| Corrosion Resistance | High resistance due to polypropylene construction |
| Temperature Resistance | Suitable for normal industrial operating conditions |
| Mounting Options | Weld plate, rail mounting, screw mounting, cover plate kits available |
| Color | Green (standard polypropylene body) |
| Compliance | DIN 3015-1 Tube Clamp Standard |
