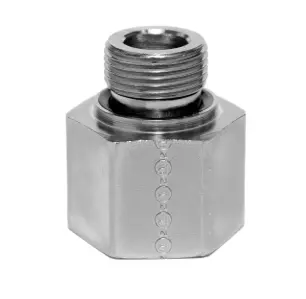

RHD10LOMDCF
DESCRIPTION:
Parker non-return valves with nominal pressure ratings up to PN 420 bar offer a wide range of types, making them very flexible.
TECHNICAL DESCRIPTION:
| Connection 3 Size: | n/a |
| Connection 2 Type: | EO 24° cone end |
| Connection 1 Type: | EO 24° cone end |
| Maximum Operating Temperature: | +120 °C |
| Maximum Flow Rate: | n/a |
| Configuration: | n/a |
| Minimum Operating Temperature: | -40 °C |
| Mounting Type: | Screw |
| Actuation Type: | Mechanical |
| Maximum Operating Pressure: | 400 bar |
| Connection 2 Size: | 10 mm |
| Connection 1 Size: | 10 mm |
| Cracking Pressure: | 1 bar |
| Body Material: | Steel |
