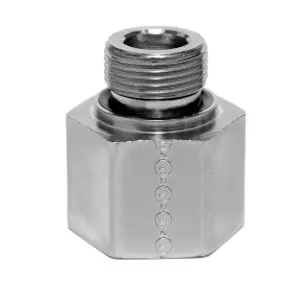

RI3/8EDX1/4CF
DESCRIPTION:
The main function of Ermeto DIN port reducers is to match the sizes of different ports. This range of port reducers is available in steel and stainless steel.
TECHNICAL DECRIPTION:
| Connection 1 Type: | Male BSPP |
| Connection 2 Size: | G 1/4 |
| Connection 2 Type: | Female BSPP |
| Seal Type: | ED Seal |
| Body Material: | Steel |
| Connection 1 Size: | G 3/8 A |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting, Reducer |
| Configuration: | Port to Port |
| Maximum Operating Pressure: | 400 bar |
| Shape: | Straight |
| Connection 1 Type: | Male, BSPP |
| Connection 1 Size: | G 3/8 A inch Thread |
| Connection 2 Type: | Female, BSPP |
| Connection 2 Size: | G 1/4 inch Thread |
| Specifications Met: | DIN, ISO 8434, ISO 1179 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | ED Seal |
| Seal Material: | NBR |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
