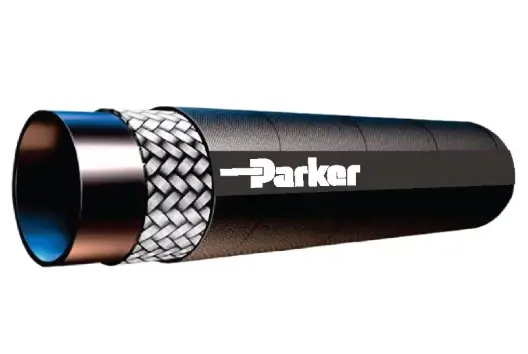

SAE100R6PM-4PM
DESCRIPTION:
SAE100R6PM hose is made as per the specification SAE type 100 R6. Hose reinforcement is synthetic textile braid and recommended for using on low pressure and return lines.
Technical Specifications
| Application: | Hydraulics |
| Weight: | 0.13 kg/m |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Maximum Operating Pressure: | 400 psi |
| Minimum Bend Radius: | 65 mm |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | EN 854, Type R6, SAE 100R6 |
| Inside Diameter: | 1/4 inch |
| Outside Diameter: | 12.7 mm |
| Hose I.D. (inch): | 1/4 |
