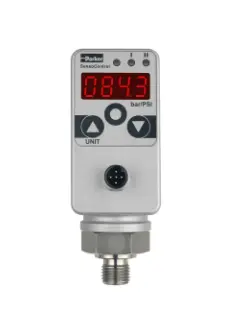

SCPSD-250-14-15
Technical Specifications
| Output Type: | 0 … 20 mA |
| Width: | 39.5 mm |
| Operating Pressure: | 0...250 bar |
| Port Type: | BSPP outer thread |
| Switch Option: | 2 switching ouputs |
| Weight: | Approx. 300 g |
| Industry: | Mobile |
| Burst Pressure: | 1200 bar |
| Brand: | SensoControl |
| Electrical Connection: | Circular connector M12x1 5-pole |
| Length: | n.a |
| Port Size: | G 1/4" BSPP outer thread |
| Application: | Industrial applications |
| Product Type: | Pressure Controller |
| Response Time: | ≤ 10 ms |
| Technology: | Pressure |
| Height: | n.a |
| Division: | High Pressure Connectors Europe Division |
| Body Material: | Painted zinc die cast Z 410 |
| Product Style: | Display sensor |
| Specifications Met: | CE |
| Operating Temperature: | -20 to 85 °C, -4 to 185 °F |
